Overview

The 12kV 630A insulating cap is an accessory for live bushings, providing an insulating cover for live bushings and a dustproof and moisture-proof cover for non-live joints.

The 630A insulating cap can be installed on 630A bushings, busbars, and wall-mounted equipment. When spare outgoing lines are reserved on the busbars and cable joints, the 630A insulating cap must be used to seal them.

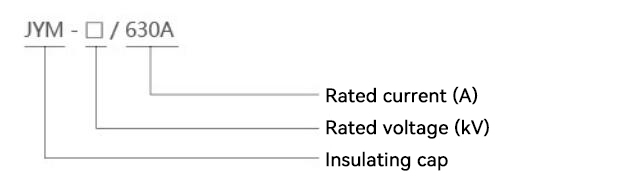

Model and Meaning

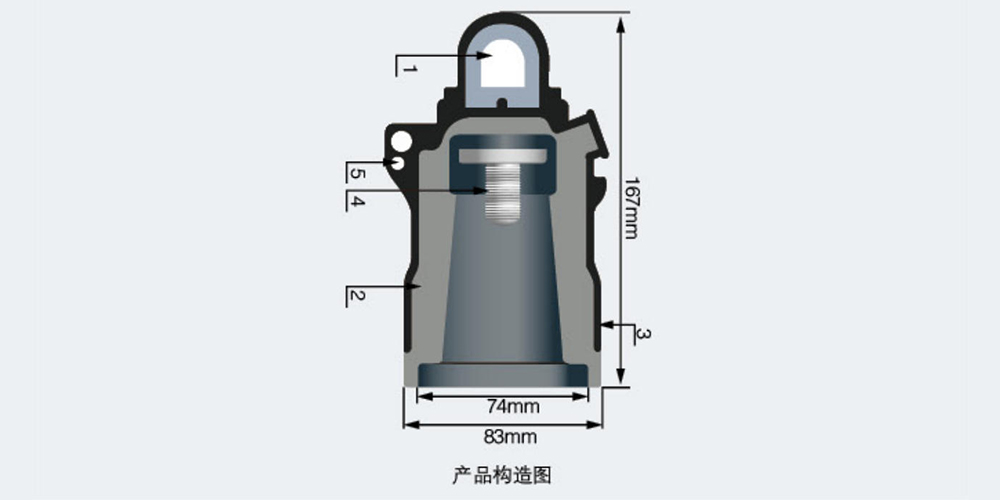

Product Structure

Operating ring: Made of special iron metal, it facilitates product installation and operation;

Insulation layer: A proprietary formula and mixing technology ensure the superior quality of the pre-insulated silicone rubber;

Outer semiconductive layer: Prefabricated conductive silicone rubber conforming to IEEE 592 standard;

Internal thread: The internal thread is M16-2;

Grounding eye: The product is grounded through the grounding eye.

Standard packaging

Insulating cap body

Cleaning paper

Silicone grease

Certificate of Conformity

Installation Instructions
