Fully cold shrink two-core intermediate connection

Contact Us Download Sample

Prev: Fully cold shrink two-core terminal Next: 0.6/1KV fully cold shrink three-core terminal

Product Details

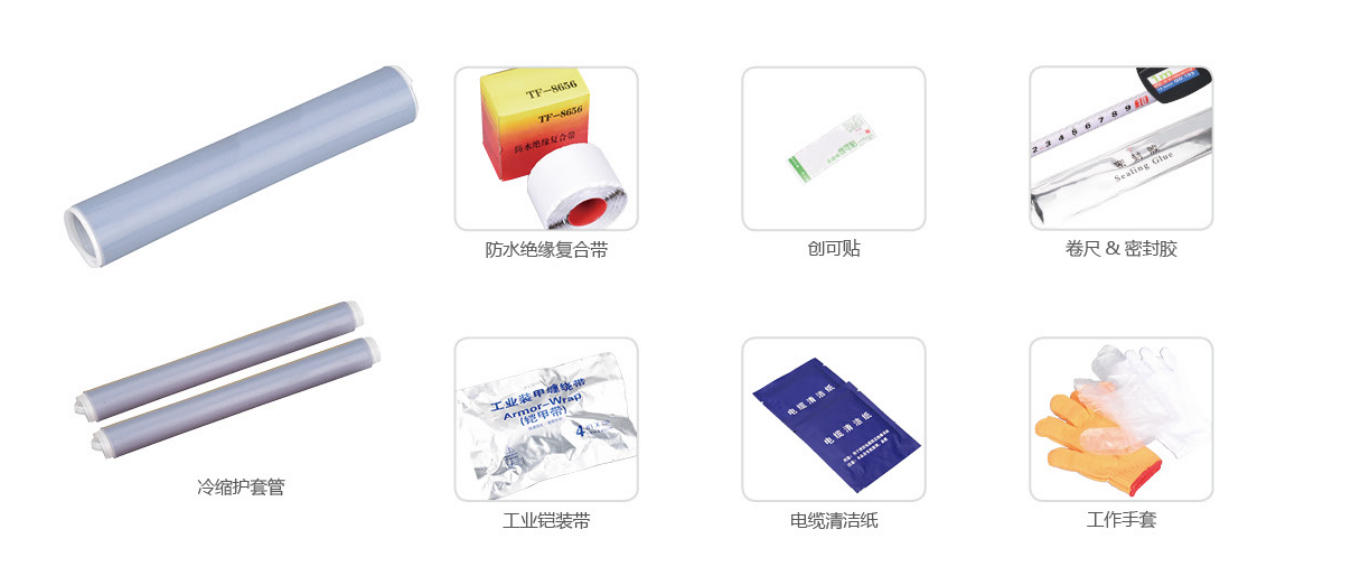

Fully cold shrink two-core intermediate connection.jpg

Ordering Information

Product Name	Voltage level	Product Specifications	Product Model	Cable cross-sectional area	Main insulation outer diameter of the cable (m)	Set/Weight (kg)
Two-core intermediate connection	0.6/1kV	2.0#	JLS1-2x0	10~16	14.8~17.4	0.96
	0.6/1kV	2.1#	JLS1-2x1	25~50	20.4~23.0	0.97
	0.6/1kV	2.2#	JLS1-2x2	70~120	22.2~27.4	0.99
	0.6/1kV	2.3#	JLS1-2x3	150~240	30.6~38.0	1.7
	0.6/1kV	2.4#	JLS1-2x4	300~400	40.2~41	1.73
	0.6/1kV	2.5#	JLS1-2x5	500~630	42~43	1.75

Standard accessories package

Product Specifications	Tape measure	Band-aid	Cleaning paper	Work gloves	Auxiliary gloves	Disposable gloves	Waterproof insulating composite tape	Industrial armored bags	Certificate of Conformity	Installation process book
	Roll	Open	Bag	Pair	Pair	Pair	Box	Bag	Open	Open
0#(10-16mm²)	1	2	2	1	1	2	2	2	1	1
1#(25-50mm²）	1	2	2	1	1	2	2	2	1	1
2#(70-120mm²)	1	2	3	1	1	2	2	2	1	1
3#(150-240mm²)	1	2	3	1	1	2	2	2	1	1
4#(300-400mm²）	1	2	4	1	1	2	2	2	1	1
5#(500-630mm²）	1	2	4	1	1	2	2	2	1	1
