Fully cold shrink two-core terminal

Contact Us Download Sample

Prev: Full cold shrink cable accessories 0.6/1KA Next: Fully cold shrink two-core intermediate connection

Product Details

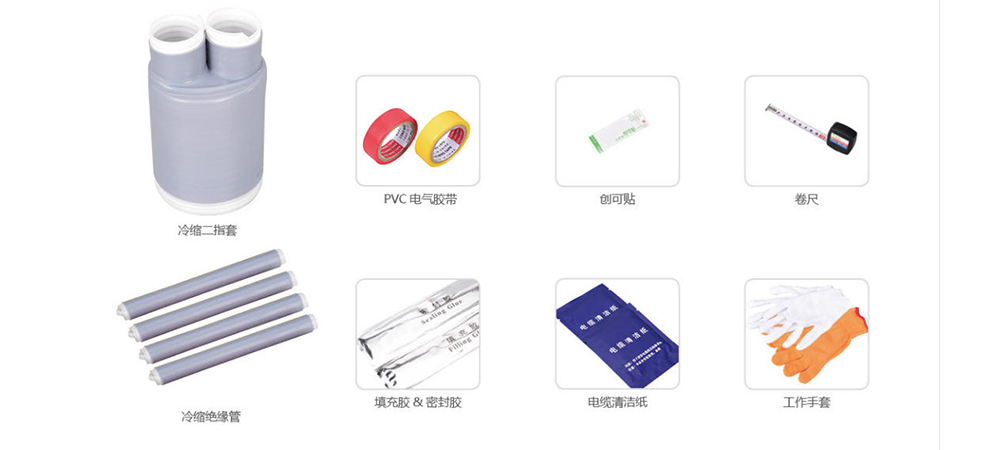

Fully cold shrink two-core terminal.jpg

Ordering Information

Product Name	Voltage level	Product Specifications	Product Model	Cable cross-sectional area	Main insulation outer diameter of the cable (m)	Set/Weight (kg)
Two-chip terminal	0.6/1kV	2.0#	JLS1-2x0	10~16	14.8~17.4	0.32
	0.6/1kV	2.1#	JLS1-2x1	25~50	20.4~23.0	0.33
	0.6/1kV	2.2#	JLS1-2x2	70~120	22.2~27.4	0.36
	0.6/1kV	2.3#	JLS1-2x3	150~240	30.6~38.0	0.45
	0.6/1kV	2.4#	JLS1-2x4	300~400	40.2~41	0.56
	0.6/1kV	2.5#	JLS1-2x5	500~630	42~43	0.6

Standard accessories package

Product Specifications	Tape measure	Filling glue	Sealant	Band-aid	Cleaning paper	Work gloves	Auxiliary gloves	PVC electrical tape	Certificate of Conformity	Installation process book
	Roll	Bag	Bag	Open	Bag	Pair	Pair	Indivual	Open	Open
0#(10-16mm²)	1	1	1	2	2	1	1	2	1	1
1#(25-50mm²）	1	1	1	2	2	1	1	2	1	1
2#(70-120mm²)	1	1	1	2	3	1	1	2	1	1
3#(150-240mm²)	1	2	2	2	3	1	1	2	1	1
4#(300-400mm²）	1	2	2	2	4	1	1	2	1	1
5#(500-630mm²）	1	2	2	2	4	1	1	2	1	1
