RW12-15 Jet-type Fuse (High-end Model)

RW12-15 Jet-type Fuse (High-end Model).jpg

Main technical parameters

ProjectRW12RW12
Rated voltage (kV)12(15)12(15)
Rated current (A)100200
Rated frequency (Hz)5050
Base rated current (A)100200
Rated short-circuit breaking current (kA/A)8/100、12.5/100、16/10012.5/200、16/200
Power frequency withstand voltage temperature test (kV)45/5545/55
Power frequency withstand voltage dry test (kV)50/5550/55
Rated lightning impulse voltage (kV)125125
Creepage distance (mm/kV)330330
Mechanical life (times)500500
Altitude (mm)10001000
Ambient temperature (°C)-30℃~+40℃-30℃~+40℃
External dimensions (cm)50x36x12.550x36x12.5


RW12-15 Jet-type Fuse (High-end Model)

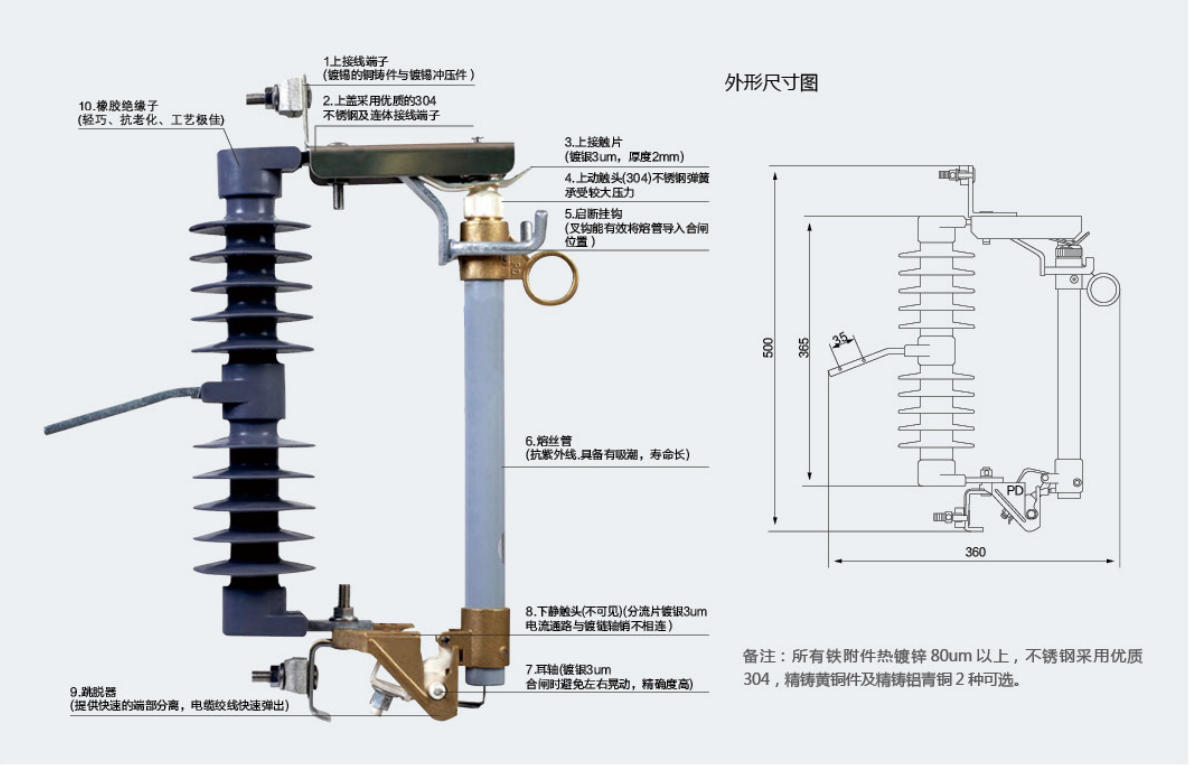

RW12-15 Jet-type Fuse (High-end Model).jpg

Main technical parameters

ProjectRW12RW12
Rated voltage (kV)12(15)12(15)
Rated current (A)100200
Rated frequency (Hz)5050
Base rated current (A)100200
Rated short-circuit breaking current (kA/A)8/100、12.5/100、16/10012.5/200、16/200
Power frequency withstand voltage temperature test (kV)45/5545/55
Power frequency withstand voltage dry test (kV)50/5550/55
Rated lightning impulse voltage (kV)125125
Creepage distance (mm/kV)330330
Mechanical life (times)500500
Altitude (mm)10001000
Ambient temperature (°C)-40℃~+70°C-40℃~+70°C
External dimensions (cm)50x36x12.550x36x12.5


RW12-35 Jet-type Fuse (High-end Model)

RW12-35 Jet-type Fuse (High-end Model).jpg

Main technical parameters

ProjectRW12RW12
Rated voltage (kV)3535
Rated current (A)100200
Rated frequency (Hz)5050
Base rated current (A)100200
Rated short-circuit breaking current (kA/A)8/100、12.5/100、16/10012.5/200、16/200
Power frequency withstand voltage temperature test (kV)9595
Power frequency withstand voltage dry test (kV)9595
Rated lightning impulse voltage (kV)200200
Creepage distance (mm/kV)125.6125.6
Mechanical life (times)500500
Altitude (mm)10001000
Ambient temperature (°C)-10℃~+70℃-10℃~+70℃
External dimensions (cm)90x40x1790x40x17


RW12-35 Jet-type Fuse (High-end Model)

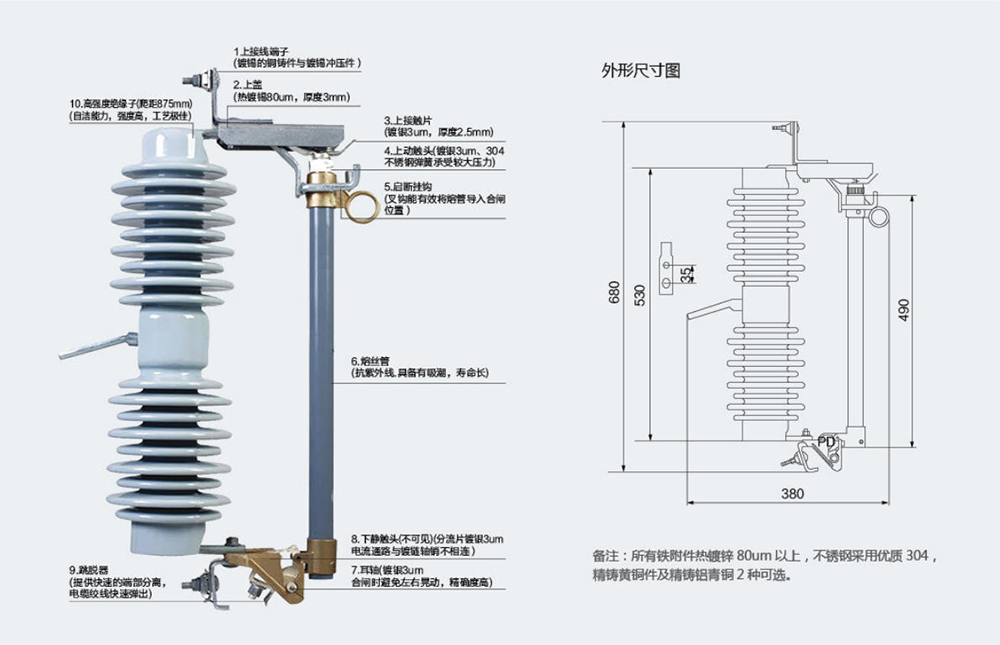

RW12-35 Jet-type Fuse (High-end Model).jpg

Main technical parameters

ProjectRW12RW12
Rated voltage (kV)3535
Rated current (A)100200
Rated frequency (Hz)5050
Base rated current (A)100200
Rated short-circuit breaking current (kA/A)12.5/100、16/10012.5/200、16/200
Power frequency withstand voltage temperature test (kV)85/9585/95
Power frequency withstand voltage dry test (kV)90/9590/95
Rated lightning impulse voltage (kV)170170
Creepage distance (mm/kV)875875
Mechanical life (times)500500
Altitude (mm)10001000
Ambient temperature (°C)-40℃~+70℃-40℃~+70℃
External dimensions (cm)68x38x1668x38x16


RW12-15 Jet-type Fuse (High-end Model)

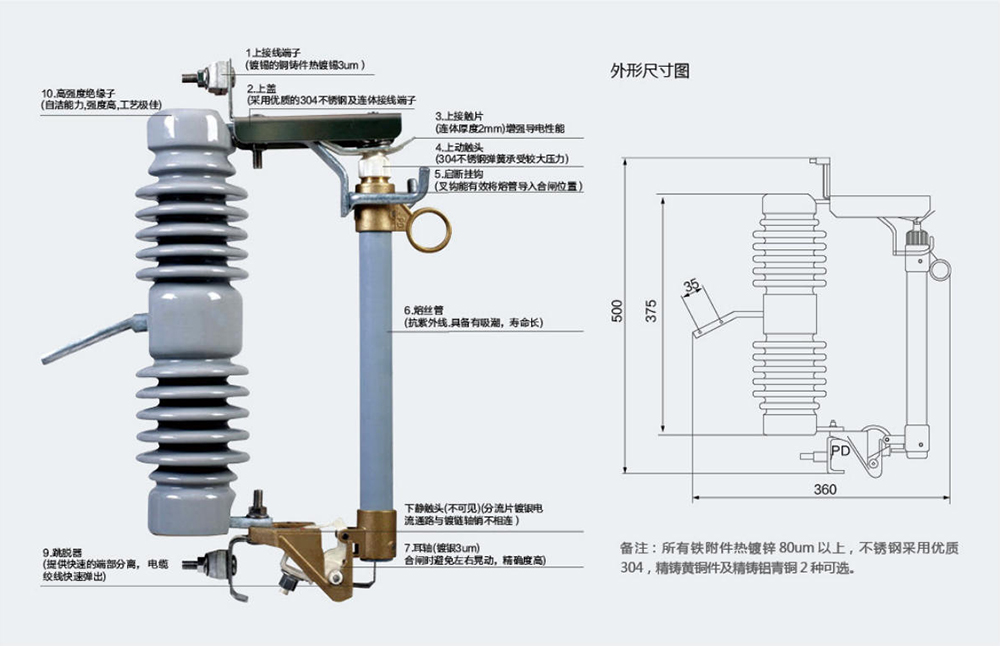

RW12-15 Jet-type Fuse (High-end Model).jpg

Main technical parameters

ProjectRW12RW12
Rated voltage (kV)12(15)12(15)
Rated current (A)100200
Rated frequency (Hz)5050
Base rated current (A)100200
Rated short-circuit breaking current (kA/A)8/100、12.5/100、16/10012.5/200、16/200
Power frequency withstand voltage temperature test (kV)45/5545/55
Power frequency withstand voltage dry test (kV)50/5550/55
Rated lightning impulse voltage (kV)125125
Creepage distance (mm/kV)330330
Mechanical life (times)500500
Altitude (mm)10001000
Ambient temperature (°C)-30℃~+40℃-30℃~+40℃
External dimensions (cm)50x36x12.550x36x12.5
