RW33-15 Jet-type Fuse (High-end Model)

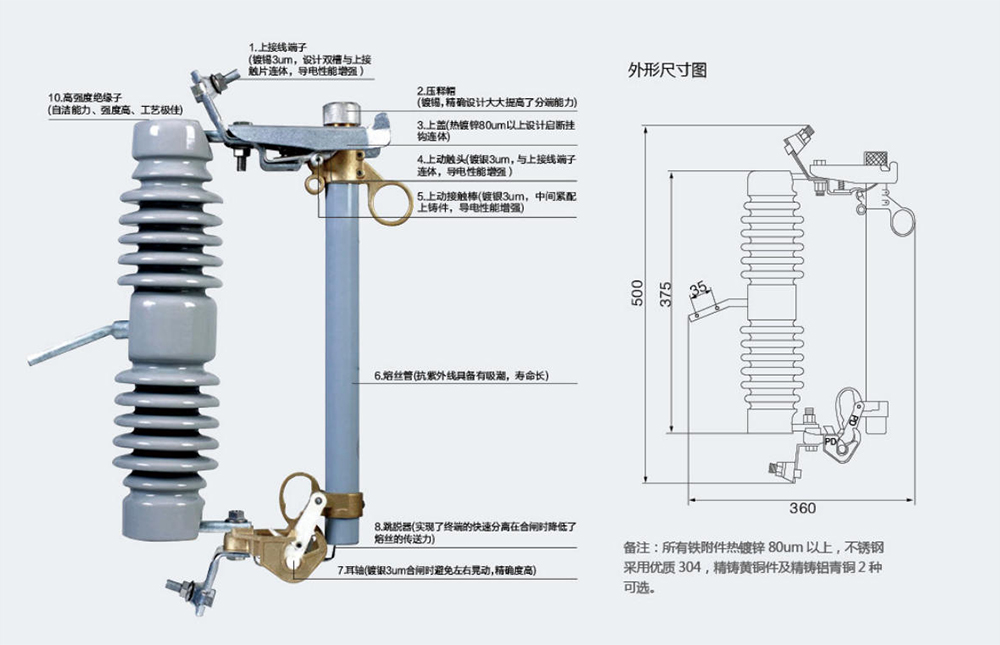

RW33-15 Jet-type Fuse (High-end Model).jpg

Main technical parameters

Project	RW33	RW33
Rated voltage (kV)	12(15)	12(15)
Rated current (A)	100	200
Rated frequency (Hz)	50	50
Base rated current (A)	100	200
Rated short-circuit breaking current (kA/A)	12.5/100、16/100	12.5/200、16/200
Power frequency withstand voltage temperature test (kV)	45/55	45/55
Power frequency withstand voltage dry test (kV)	50/55	50/55
Rated lightning impulse voltage (kV)	125	125
Creepage distance (mm/kV)	330	330
Mechanical life (times)	500	500
Altitude (mm)	1000	1000
Ambient temperature (°C)	-40℃~+70℃	-40℃~+70℃
External dimensions (cm)	50x36x12.5	50x36x12.5
