RW12-15F drop-out fuse (high-end type)-Minsai Electric Group Co., Ltd.

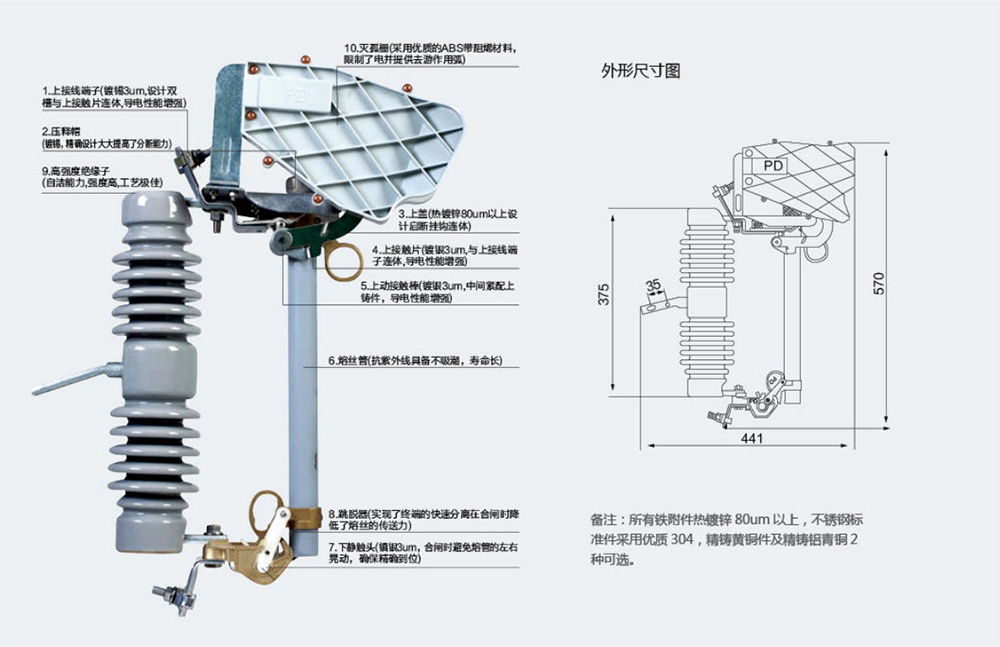

RW12-15F Jet-Type Fuse (High-End Model).jpg

Project	RW12	RW12
Rated voltage (kV)	12(15)	12(15)
Rated current (A)	100	200
Rated frequency (Hz)	50	50
Base rated current (A)	100	200
Rated short-circuit breaking current (kA/A)	12.5/100、16/100	12.5/200、16/200
Power frequency withstand voltage temperature test (kV)	45/55	45/55
Power frequency withstand voltage dry test (kV)	50/55	50/55
Rated lightning impulse voltage (kV)	125	125
Creepage distance (mm/kV)	330	330
Mechanical life (times)	500	500
Altitude (mm)	1000	1000
Ambient temperature (°C)	-40℃~+70℃	-40℃~+70℃
External dimensions (cm)	60x40x15	60x40x15
