Overview

European-style cable junction boxes are widely used in cable engineering projects in power distribution networks in recent years. Their main features include bidirectional opening, use of wall bushings as connecting busbars, and significant advantages such as short length, clear cable arrangement, and no need for large-span crossings of three cables. The cable joints used conform to the DIN47636 standard. Generally, bolt-fixed cable joints with a rated current of 630A are used.

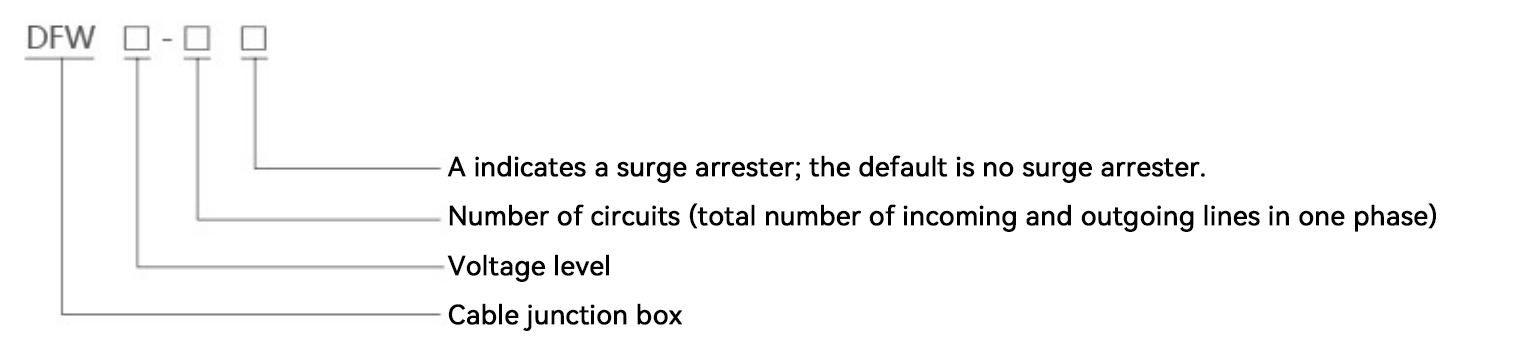

Model and Meaning

Usage conditions

u Ambient temperature: Highest temperature: +40℃, Lowest temperature: -30℃;

u Wind speed: equivalent to 34 m/s (not exceeding 700 Pa);

u Humidity: The average daily relative humidity is no greater than 95%, and the average monthly relative humidity is no greater than 95%.

u Earthquake resistance: Horizontal acceleration not exceeding 0.4 m/s², vertical acceleration not exceeding 0.15 m/s²;

u Installation location inclination: not greater than 3°;

u Installation environment: The surrounding air is not significantly polluted by corrosive or flammable gases or water vapor, and the installation site is free from severe vibration.

Note: If you order this product under conditions exceeding the above requirements, please consult with our company.

Main technical parameters

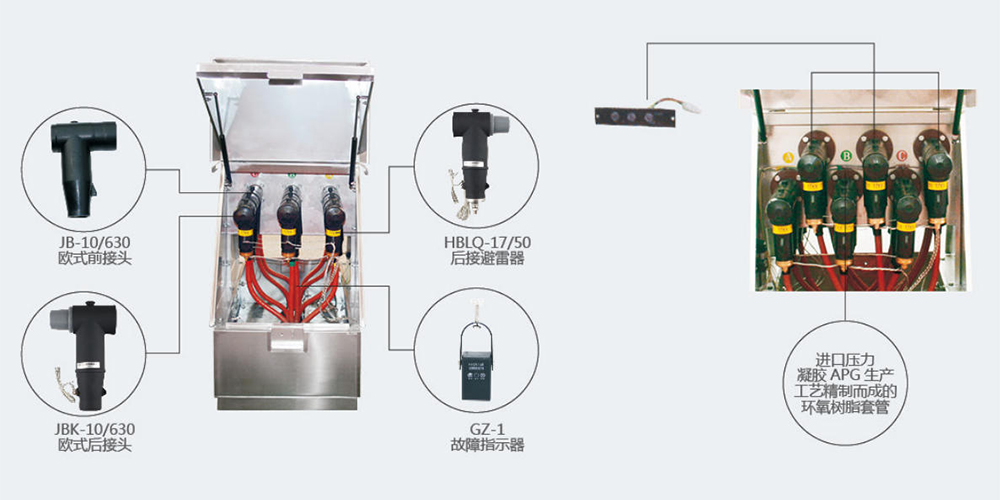

European-style cable junction box internal distribution diagram

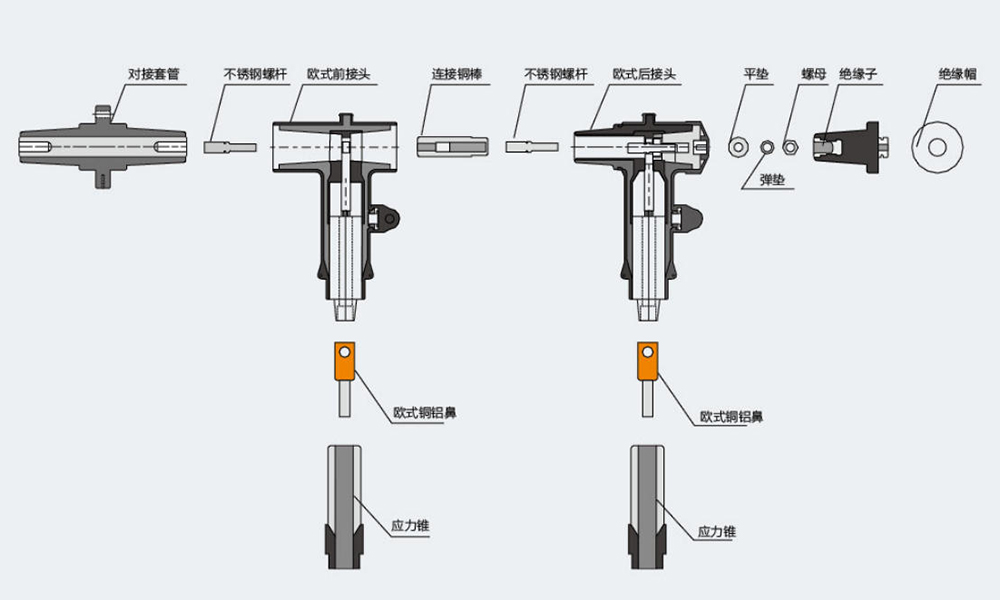

European connector diagram
