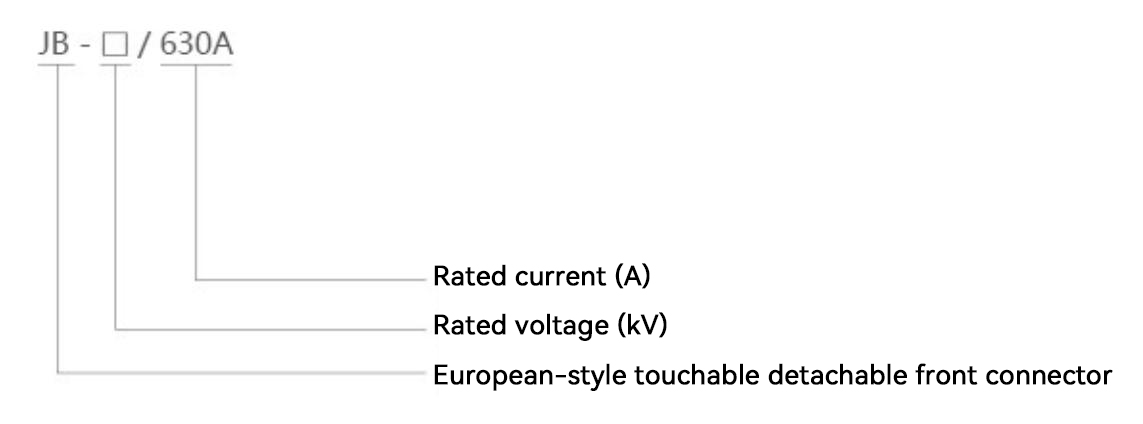

Model and Meaning

Application

◆The 630A prefabricated connector enables the connection of single-phase or three-phase insulated cables to transformers, switchgear, branch boxes, and other equipment.

◆Suitable for indoor and outdoor installation.

◆Rated voltage: 8.7/15kV

◆Continuous rated current 630A; (900A overload can be sustained for 8 hours)

◆Expandable (JBK) rear connectors or (HBLQ) series surge arresters allow for multi-channel installation or provide overvoltage protection.

◆Cable characteristics:

◇Copper or aluminum conductor.

◇Has semi-conductive or metallic shielding

◇Cable conductor cross-section: 12kV 25-500mm²

Install

◆No special tools, straps, or padding required;

◆Power on and operate immediately after the cable connector is installed into the relevant components;

◆Standard accessories and installation instructions are provided.

(Please contact us for any special requirements)
