LZJC-10Q current transformer (LZJ-10 fully enclosed type)-Minsai Electric Group Co., Ltd.

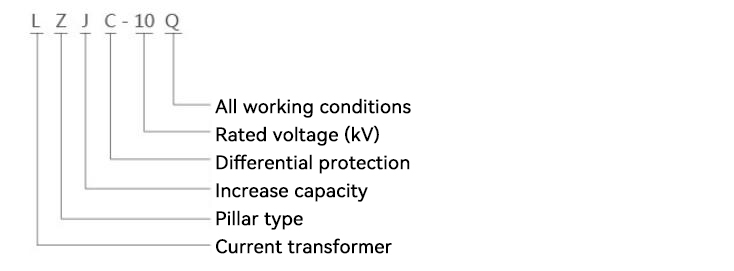

Model Meaning.jpg

Product Model	Rated current ratio (A)	Level combination	Accuracy class and rated output (VA) COSФ=0.8				1-second thermally stable current	Dynamic stability current
Product Model	Rated current ratio (A)	Level combination	0.2S	0.2	0.5	10P15	1-second thermally stable current	Dynamic stability current
LZJC-10Q	5/5	0.2S/10P150.2/10P150.5/10P15	10	10	10	15	0.4	0.8
	10/5		10	10	10	15	0.8	1.5
	15/5		10	10	10	15	1.1	2.3
	20/5		10	10	10	15	1.5	3
	30/5		10	10	10	15	2.3	4.5
	40/5		10	10	10	15	3.8	7.5
	50/5		10	10	10	15	5.6	11.3
	75/5		10	10	10	15	7.5	15
	150/5		10	10	10	15	11.3	23
	200/5		10	10	10	15	15	30
	300/5		10	10	10	15	22.5	45
	400/5		10	10	10	15	30	60
	600/5		10	10	10	15	30	60
	800/5		10	10	10	15	40	80
	1000/5		10	10	10	15	45	90
	1500/5		10	10	10	15	45	90
